Factory-Direct Since 2004
Permanent
Fixed Ladder
Permanent fixed ladder systems anchored and load-tested — M12 anchor sets, structural calcs and pre-assembly included on every order.
Anchor Sets Included
Standard Heights
Rung Load Rating
Docs + Calcs Included
Anchored & Load-Tested
Permanent Fixed Ladder Systems, Anchored & Load-Tested
-
M12 anchor sets included with every permanent system
-
Anchored and load-tested before shipment
-
Wall, floor and tank mounting brackets engineered to your substrate
-
Anchor and load design verified per OSHA 1910.27, EN ISO 14122-4
Permanent vs. Portable
Permanent Fixed Ladder
A permanent fixed ladder is bolted and anchored to the structure — it stays in place for the life of the facility. Unlike a portable ladder, it is engineered for continuous daily use, carries its full load rating through the anchors, and can be combined with a cage or fall-arrest rail for code compliance.
- Engineered for continuous daily use
- Load carried through M12 anchors, verified in calcs
- Custom & standard configurations
- 500+ projects across 50+ countries
Choose Your Configuration
Permanent Fixed Ladder Options & Configurations
Every permanent system is anchored and load-tested — custom & standard options available.
Wall-Mounted
The most common permanent installation — ladder stiles bolted to the wall with M12 anchors at engineered spacing.
Free-Standing
Floor-anchored permanent ladders for open structures — base plate bolted to concrete with M12 anchor sets.
Cage or Fall-Arrest
Permanent systems pair with a safety cage, a ladder safety system rail, or both — PFAS-ready for 2018 OSHA.
Specifications
Permanent Fixed Ladder Specifications & Dimensions
The ladder core is identical to our fixed ladder line, with anchor geometry added for permanent mounting. Dual units in kN and lbf throughout.
| Specification | Standard Range | Custom |
|---|---|---|
| Anchor | M12 anchor sets included | M16 for heavy loads |
| Height | 10 – 25 ft (3 – 7.6 m) | Up to 40 ft engineered |
| Mounting | Wall / floor / tank brackets | Per substrate |
| Rung Diameter | Φ20 mm (0.79″) | Per spec |
| Rung Spacing | 280 mm / 11″ (≤300 mm) | Per project spec |
| Clear Width | 500 mm (19.7″) | Custom width |
| Cage Diameter | Φ700 mm (27.6″) | Custom |
| Load Rating | 1.5 kN per rung (≈337 lbf) | Engineered |
| HDG Thickness | 85 – 100 μm (ISO 1461) | Heavier coating |
| Material | Q235B / SS304 / SS316 | Duplex / 6063-T5 AL |
Certifications
Compliance & DoCumentation (OSHA/BS 4211/EN ISO 14122-4)
- OSHA 1910.27 — Anchor & Load Verified
- EN ISO 14122-4
- BS 4211:2005+A1:2015
- AS 1657
- Anchor & Load Design in Structural Calcs
Documentation Package
Every order ships with complete documentation — anchor calcs included, no extra cost.
-
Declaration of Conformity (DoC)
-
Material Test Certificates — EN 10204 3.1
-
Structural Calculations — anchor & load verified
-
Welding Procedure Specifications
-
Surface treatment certificates (HDG per ISO 1461)
Factory-Direct Pricing
Factory-Direct Pricing & 24h Quote
Permanent systems priced by weight and process — anchors, brackets and calcs are all transparent line items.
Custom quotation priced by weight & process. Industry reference: permanent anchored ladders ≈ USD 899–1,099/ton.
500+ Projects, 50+ Countries

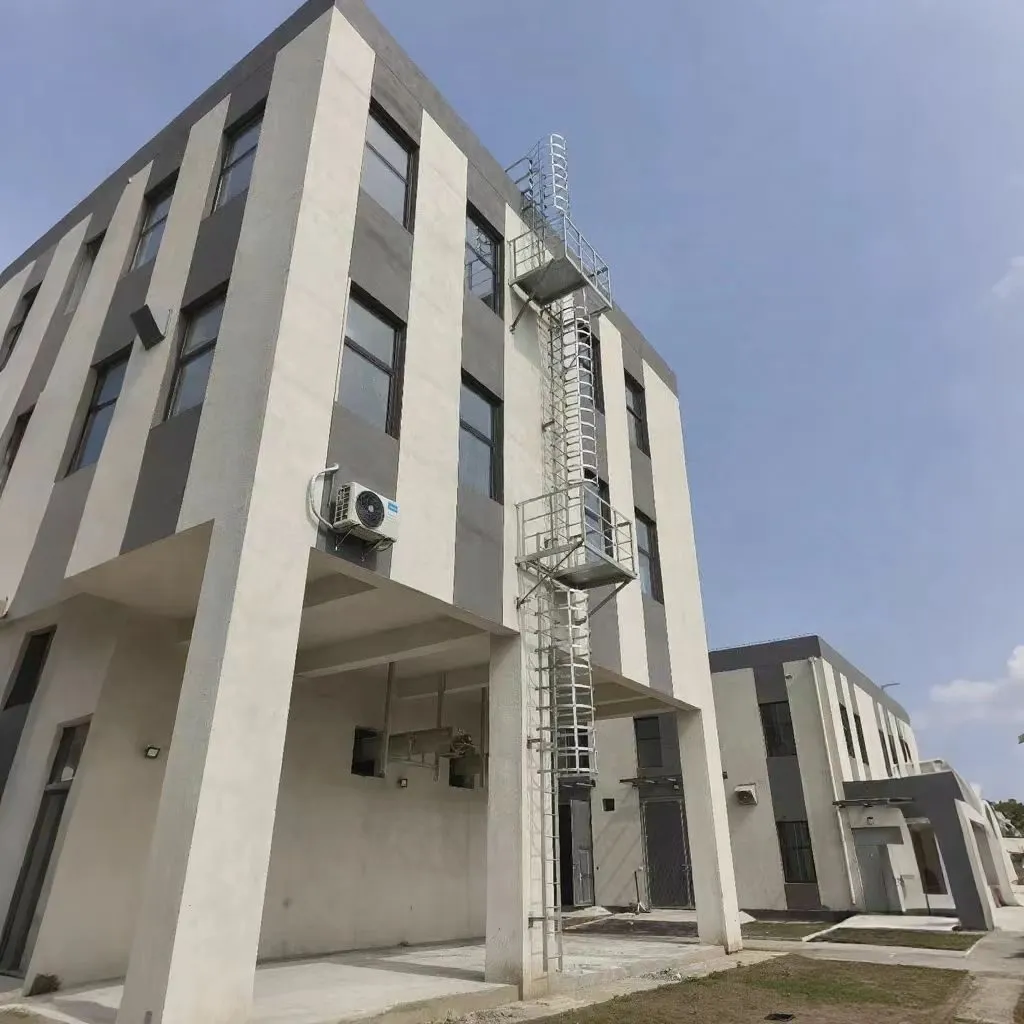

Permanent Systems We've Anchored
Desensitized examples of permanent fixed ladder installations from recent production.
Distribution Center, USA
Wall-mounted permanent ladders to mezzanine level, M12 anchors, HDG steel, cage on the upper run.
Refinery, UAE

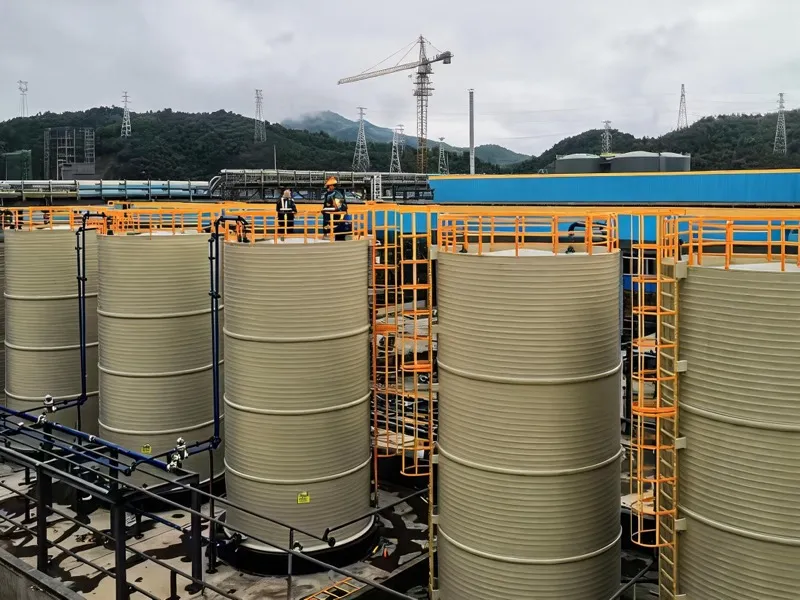

SS316 permanent ladders on tank shells, custom anchor brackets, PFAS rail integrated at factory.
Telecom Tower, Brazil
Free-standing permanent ladder, floor-anchored base plate, aluminum tri-arc cage, 20 ft standard length.
Global Shipping & Factory
Built in China, Delivered Worldwide
-
8–12 × 40ft containers shipped per month
-
VCI rust protection + ISPM 15 heat-treated wooden crates
-
EXW / FOB / CIF terms available
-
15–25 business days production lead time
Common questions
M12 anchors at engineered spacing - chemical or expansion type, HDG - with pull-out verified in the structural calcs.
Yes - M12 anchor sets are included as standard, upgraded to M16 for heavy loads.
Yes - hollow units get chemical anchors with mesh sleeves, capacity-checked per calc.
≥70 mm embedment in concrete with an 80 N·m torque spec, plus spacing and edge distance, on the installation sheet.
Standard runs 10-25 ft (3-7.6 m); engineered builds go up to 40 ft with anchor pull-out verified per calc.
Anchoring Detail
Permanent Fixed Ladder — M12 Anchoring, Substrates & Calcs
Permanent means the ladder is fixed for the life of the structure — so the anchor is engineered, not assumed. Every permanent ladder ships with M12 anchor sets, a substrate-matched fixing schedule and a calc sheet that verifies pull-out and shear at every anchor point.
| Anchor & Fixing Specification | Standard Range | Custom / Note |
|---|---|---|
| Anchor Type | M12 chemical or expansion anchor, HDG | Sets included with every order |
| Embedment Depth (concrete) | ≥ 70 mm (M12) | Per anchor manufacturer data |
| Anchor Spacing | ≥ 5 × d (60 mm for M12) | Per ETA / manufacturer |
| Edge Distance | ≥ 5 × d (60 mm for M12) | Per ETA / manufacturer |
| Anchor Points per Stile | 2 – 3 per 3 m section | Per structural calc |
| Concrete Substrate | C20 / C25 / C30, cracked & uncracked | Chemical anchors (injection type) |
| Steel Substrate | M12 bolts or 4 – 6 mm fillet weld to structure | Bracket-to-steel per drawing |
| Masonry Substrate | M12 sleeve anchors (solid); chemical + sleeve (hollow) | Capacity per calc |
| Bolt Torque | 80 N·m (M12 grade 8.8) | On installation sheet |
| Design Verification | Pull-out + shear per anchor; overturning check | Structural calc sheet with order |
| Load Rating | 1.5 kN per rung (≈337 lbf) | Anchor loads derived from ladder loads |
Substrate Selection
Choose the fixing for your wall
- Reinforced concrete (C25/30): M12 chemical anchor, 70 – 80 mm embedment — the highest-capacity fixing; used for tall and heavily loaded ladders.
- Brick / block masonry: M12 sleeve anchors in solid units; hollow blocks get chemical anchors with mesh sleeves — always capacity-checked per calc.
- Structural steel: M12 bolts through brackets, or a 4 – 6 mm fillet weld where the drawing specifies welding.
- Not sure what the wall is? Send photos — the free drawing review identifies the substrate and returns the anchor schedule.
The Calc Sheet
What is verified before the anchor is specified
- Pull-out: each M12 anchor is checked in tension against the ladder's applied loads, with the safety factor applied.
- Shear: horizontal loads (climber forces, wind on the cage) are checked per anchor in shear.
- Overturning: the whole ladder is checked as a cantilever on its anchor group — the calc proves the fixing pattern, not just the steel.
- Delivered with order: structural calcs, DoC and MTC 3.1 ship with every permanent ladder — audit-ready from day one.
Permanent Fixed Ladder — Buyer FAQ
M12 chemical or expansion anchor sets in HDG, with embedment depth (≥ 70 mm in concrete), spacing, edge distance and 80 N·m torque spec on the installation sheet.
Yes — sleeve anchors in solid units; hollow block gets chemical anchors with mesh sleeves. Capacity is always checked in the calc before the anchor is specified.
Yes — anchor pull-out, shear and overturning checks are in the calc sheet that ships with the order, together with DoC and MTC 3.1.
Only the anchor holes — drilled on site using our drilling template. No cutting, bending or welding of the ladder is ever required.
Brackets bolt with M12 HDG bolts or weld with a 4 – 6 mm fillet per the drawing — both options come with the weld and bolt schedule in the calc.
Proven in real facilities
Reference projects are shown by industry, country and scale. Client names are available on request with approval.
National utility projects — 15+ countries
23 documented projects, 2021-2025 · 2025
All standardsEnergy & industrial clients — Global
500+ projects since 2004 · 2004-2025
Full compliance docsLargest single order — Malaysia
60 units in one project · 2021
HDGGet Your Quote
Talk to an Engineer
Free drawing review. Itemized quote in 24 hours. No obligation.
