Fixed Vertical Ladder
Vertical fixed ladders to 14 m — HDG steel or SS304/SS316, with full compliance documentation and DoCs with every order.
Rung Diameter
Max Single Run
Rung Load Rating
HDG Finish
Height Bands & Fall Protection

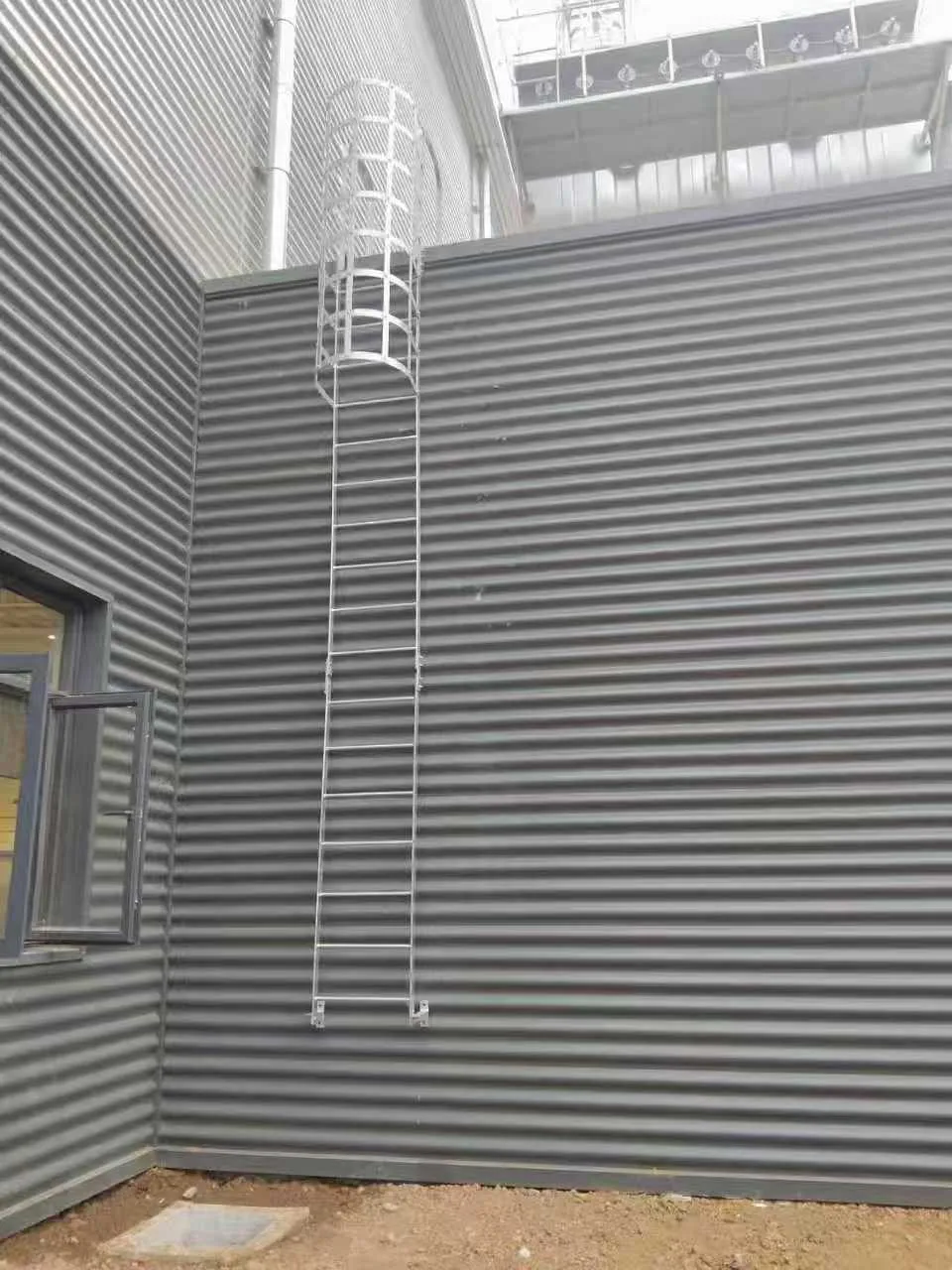

Fixed Vertical Ladder
A fixed vertical ladder runs straight up a wall, tank or column. We build continuous runs to 14 m in HDG or stainless — with the fall-protection layer that matches the height.
Up to 10 ft (3 m)
Short vertical runs for plant platforms and tank steps. Plain rung ladder, no fall-arrest hardware required.
10 – 24 ft (3 – 7.3 m)
Mid-height runs. A cage or ladder safety system can be added where site policy asks for it.
24 – 46 ft (to 14 m)
Tall vertical runs with a PFAS rail or ladder safety system — what OSHA 1910.27 expects over 24 ft.
Vertical to 14 m, HDG or SS304/SS316
14 m is our standard single-run ceiling for shipping and handling. Longer climbs are split with a rest platform — each section still ships pre-assembled and fully documented.
Dimensions & Standards
Fixed Vertical Ladder Specifications & Dimensions
Standard vertical geometry plus custom engineering for height, fall-protection and mounting surface. Every figure is on the shop drawing we send for approval.
Factory-Direct Manufacturer
You buy from the maker — no middleman markup on the vertical run, the rail, or the finishing.
| Specification | Standard Range | Custom |
|---|---|---|
| Height | Up to 14 m single run | Split with rest platforms |
| Material | Q235B / SS304 / SS316 | Duplex / 6063-T5 AL |
| Rung Diameter | Φ20 mm (0.79″) | Per spec |
| Rung Spacing | 280 mm / 11″ (≤300 mm) | Per project spec |
| Clear Width | 500 mm (19.7″) | Custom width |
| Mounting | Wall / tank / column | Standoff brackets |
| Load Rating | 1.5 kN per rung | Engineered |
| HDG Thickness | 85 – 100 μm (ISO 1461) | Heavier coating |
| Finish | HDG / Pickled / Painted | Electropolish (SS) |
| Fall Protection | None / cage / PFAS rail | Ladder safety system |
Factory-Direct Pricing
Factory-Direct Pricing & 24h Quote
No middleman markup. Priced by weight and process — material, machining, finishing, packaging, line by line.
Custom quotation priced by weight & process. Industry reference: vertical fixed ladders ≈ USD 899–1,099/ton.
Build Options
Fixed Vertical Ladder Options & Configurations
Same vertical geometry, three material families, plus rail, cage and standoff options.
Galvanized Steel Vertical
Q235B, HDG 85–100 μm — the value pick for tanks, silos and roof access.
Stainless Vertical (SS304/316)
For chemical, food and marine vertical access where corrosion resistance is the whole point.
Aluminum Vertical (6063-T5)
Lightweight and non-sparking for telecom towers, water treatment and roof access.
Certifications
Compliance & DoCumentation
- OSHA 1910.27 — vertical ladder fall-protection rules
- BS 4211:2005+A1:2015 — permanent safety ladders
- EN ISO 14122-4 — permanent means of access
- AS 1657 — Australian fixed-ladder practice
Documentation Package
DoCs with every order — DoC, MTC, structural calcs, WPS and coating certs.
-
Declaration of Conformity (DoC)
-
Material Test Certificates — EN 10204 3.1
-
Structural Calculations
-
Welding Procedure Specifications
-
Surface treatment certificates (HDG per ISO 1461)
Export to 50+ Countries
Global Shipping, Factory Fast
VCI rust protection, ISPM 15 heat-treated crates, EXW / FOB / CIF terms. Production 15–25 business days.
Common questions
Q235B steel, SS304/SS316 and 6063-T5 aluminum, with HDG 85–100 μm, pickled or painted finishes.
To walls, tanks or columns with 8 mm standoff brackets and M12 anchors — or welded cleats on steel structures, bracket loads in the calcs.
500 mm (19.7 in) as standard; custom widths are engineered from your drawing with the free review.
DoC, MTC 3.1, structural calcs and the HDG coating report — OSHA 1910.27, BS 4211 and EN ISO 14122-4 compliant.
Hot-dip galvanized 85–100 μm per ISO 1461 for outdoor and coastal sites; SS304/SS316 for aggressive environments.
Climb Spec & Ergonomics
Fixed Vertical Ladder — the Numbers That Matter
A vertical ladder is judged by four numbers: rung diameter, rung pitch, clear width and per-rung load. Get those right and the climb stays comfortable at 14 m — get them wrong and every ascent is a fight.
Climb Comfort — What We Build In
Rung pitch never varies along the run — a uniform stride keeps the climber in a steady rhythm and reduces fatigue on tall climbs.
Φ20 mm serrated rungs grip wet boots; HDG or stainless keeps the grip surface for decades without maintenance.
Rungs held clear of the wall so toes and knuckles never scrape — the gap that separates a comfortable ladder from a cramped one.
Beyond 14 m we split the climb with a rest platform — each section still ships pre-assembled and trial-fitted.
Vertical Ladder Specifications
| Specification | Standard | Compliance Note |
|---|---|---|
| Rung diameter | Φ20 mm (0.79″) | Serrated anti-slip surface as standard |
| Rung pitch | 280 mm (11″), ≤ 300 mm | EN ISO 14122-4 / OSHA 1910.23 |
| Clear width | 500 mm (19.7″) | Between stiles, rung to rung |
| Load rating | 1.5 kN per rung (≈ 337 lbf) | Single-point, verified in calcs |
| Max single run | 14 m (46 ft) | Longer climbs split with rest platforms |
| Top extension | 42 in (1.07 m) above landing | Clean egress onto the platform |
| Finish | HDG 85–100 μm / SS304 / SS316 | ISO 1461 hot-dip galvanizing |
Fixed vertical ladder questions
280 mm (11″) pitch as standard — within the 300 mm maximum of EN ISO 14122-4 and OSHA 1910.23.
1.5 kN (about 337 lbf) per rung at a single point, verified in the structural calcs that ship with the order.
14 m (46 ft) as standard for shipping and handling. Longer climbs are split with rest platforms, each section pre-assembled.
Over 24 ft under OSHA — a PFAS or ladder safety system. Under 24 ft a plain vertical ladder is compliant, cage or no cage.
Yes — Φ20 mm serrated rungs as standard, in HDG or stainless, so the grip surface lasts the life of the ladder.
Proven in real facilities
Reference projects are shown by industry, country and scale. Client names are available on request with approval.
National utility projects — 15+ countries
23 documented projects, 2021-2025 · 2025
All standardsEnergy & industrial clients — Global
500+ projects since 2004 · 2004-2025
Full compliance docsLargest single order — Malaysia
60 units in one project · 2021
HDGGet Your Vertical Ladder Quote
Talk to an Engineer
Get your quote today — free drawing review, itemized pricing, no obligation.
Why Dengtai Vertical Ladders?
Full Compliance Docs
DoC, MTC, structural calcs included free.
24-Hour Quote
Height + material reviewed within one day.
Global Delivery
8–12 containers/month. VCI + ISPM 15 packaging.
Request a Vertical Ladder Quote
