OSHA 1910 Rules, Factory-Direct
OSHA 1910 Fixed Ladders
OSHA 1910 fixed ladders built to the osha fixed ladder rules your EHS team verifies — 1910.23(d) clearances, 1910.27 fall protection, and osha fixed ladder safety details on every drawing.
Rung spacing
Climbing width
Rung-to-wall clearance
PFAS fall protection
OSHA 1910 Key Requirements
10–14 in
Rung spacing (25–36 cm)
16 in min
Climbing width (41 cm)
7 in min
Rung-to-wall clearance
Over 24 ft
PFAS or ladder safety system
OSHA Fixed Ladder Safety
OSHA 1910 Fixed Ladders
Which OSHA rule governs your fixed ladder? The answer decides rung pitch, width, fall protection and platform spacing. We build to all of them.
| OSHA Rule | What it requires for fixed ladders |
|---|---|
| 1910.23(d) | Clearances, rung dimensions and side rail specs for fixed ladders — the dimensional rule. |
| 1910.27(a) | Defines fixed ladder application, capacity and the 24 ft fall protection trigger point. |
| 1910.27(b) | Rung spacing 10–14 in, climbing width ≥16 in, and minimum rung-to-wall clearance of 7 in. |
| 1910.27(c) | Clearance in front of the ladder, step-across distance, and side-step landing geometry. |
| 1910.27(d) | Cage / well / ladder safety device requirements — the section that changed for 2018+ installs. |
| 1910.28 | Duty to have fall protection and training requirements tied to fixed ladder use. |
20ft+ Fall Protection
The 24 ft rule and how it changes your new build — we flag it on your drawing review.
OSHA Rules Experts
Engineers who read 1910.23 and 1910.27 daily and document every decision.
1910.27 DoC Included
A Declaration of Conformity naming the exact OSHA rules each ladder is built to.
Configurations
OSHA Fixed Ladder Rules Options & Configurations
Choose the compliance path, then the material — every option keeps the osha fixed ladder rules intact.
Certifications
Compliance & Documentation
- OSHA 1910.23(d) — Clearance & Dimensions
- OSHA 1910.27 — Fixed Ladder Rules
- BS 4211:2005+A1:2015
- EN ISO 14122-4
- Cal/OSHA Title 8
OSHA Documentation Package
DoC, calcs and MTC 3.1 — the paperwork that turns "built to spec" into "verified to spec".
- Declaration of Conformity (DoC)
- Material Test Certificates — EN 10204 3.1
- Structural Calculations
- Welding Procedure Specifications
- Surface treatment certificates (HDG per ISO 1461)
2018 Rule Change

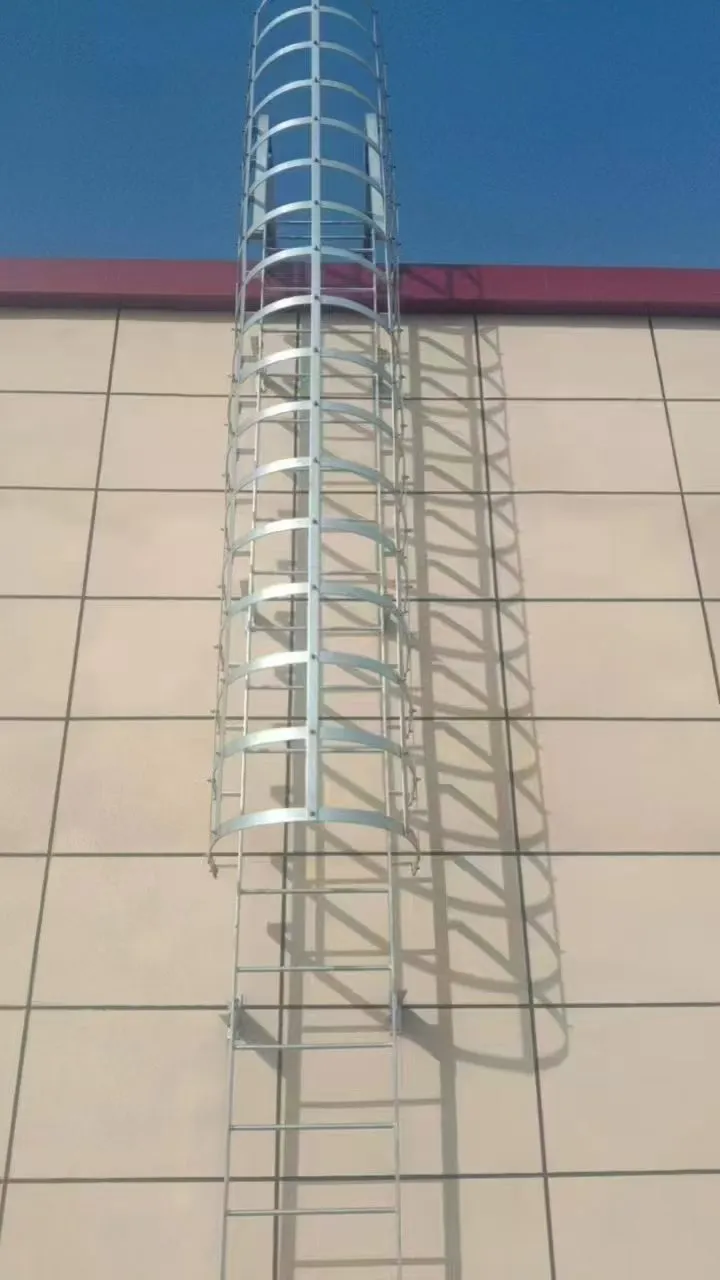

OSHA Fixed Ladder Safety Above 24 ft
The single most common audit finding on fixed ladders is the 24 ft trigger. Fixed ladders installed after November 19, 2018 that rise more than 24 ft need a personal fall arrest system or a ladder safety system — a cage alone is no longer accepted.
How we keep you rule-clean
- 1910.27(d) cage / well / safety device requirements addressed in the DoC
- Cage-to-PFAS retrofit brackets for existing ladders
- Ladder safety system rail options for new builds
- 20ft+ fall protection engineered into the structural calcs
Dimensions
OSHA 1910 Fixed Ladders Specifications & Dimensions
Standard heights 10–25 ft, custom engineering to 40 ft. Dimensional compliance is verified against 1910.23(d) before fabrication.
| Specification | Standard Range |
|---|---|
| Rung diameter | Φ20 mm (0.79″) |
| Rung spacing | 10–14 in (280 mm nominal) |
| Clear width | 500 mm (19.7″) |
| Cage diameter | Φ700 mm (27.5″) |
| Load rating | 1.5 kN per rung |
| Material | Q235B / SS304 / SS316 |
| HDG thickness | 85–100 μm (ISO 1461) |
| Fall protection | Cage or PFAS-ready |
The OSHA Rules That Apply to Fixed Ladders
OSHA fixed ladder rules sit in three places in 29 CFR Part 1910. Section 1910.23 sets the general dimensional requirements — rungs 10–14 in (25–36 cm) apart, center to center, with at least 16 in (41 cm) of climbing width. Section 1910.27 is the fixed-ladder-specific rule that adds cage, well, PFAS and landing-platform geometry. Section 1910.28 assigns the fall-protection duty itself — the rule behind the familiar "24 ft" threshold.
Under 1910.28, any fixed ladder installed after November 19, 2018 that extends more than 24 ft must be equipped with a personal fall arrest system or a ladder safety system. A cage is no longer an acceptable fall-protection answer on new ladders. Ladders already in service before that date that rely on a cage or well must be replaced or retrofitted by November 18, 2036 — a deadline many facilities are only now putting into their capital plans.
In practice, OSHA fixed ladder safety is a drawing check: rung pitch inside 10–14 in, climbing width at 16 in or more, the right fall-protection choice for the height, and landing platforms at intervals of no more than 50 ft once the ladder passes 50 ft. We review drawings free of charge, confirm the rule set that applies to your site, and ship a DoC naming the OSHA requirements met, plus MTC 3.1 and structural calcs with every order.
Practice checklist for specifiers
- Identify the rule set - 1910.23 (dimensions), 1910.27 (fixed ladders), 1910.28 (fall protection), plus your state plan if stricter
- New ladders over 24 ft - spec a PFAS or ladder safety system; do not draw a cage as fall protection
- Existing caged ladders - plan the retrofit before November 18, 2036
- Every drawing - check rung pitch 10–14 in and climbing width 16 in or more
- Tall runs - landing platforms every 50 ft on ladders over 50 ft, confirmed in the calcs
- Documentation - DoC, MTC 3.1 and structural calcs included with every order
Rule FAQ
1910.23 for general dimensions, 1910.27 for fixed-ladder-specific requirements, and 1910.28 for the fall-protection duty above 24 ft — with state plans such as Cal/OSHA potentially adding stricter limits.
Fixed ladders installed after November 19, 2018 that rise more than 24 ft need a personal fall arrest system or ladder safety system; cages no longer qualify for new installations.
Ladders installed before November 19, 2018 that exceed 24 ft and use a cage or well must convert to a PFAS or ladder safety system by November 18, 2036.
Only on existing ladders, and only until the 2036 retrofit deadline; on new ladders over 24 ft a cage does not count as fall protection.
10–14 in (25–36 cm) center to center, evenly spaced, with a minimum climbing width of 16 in (41 cm) between rails.
Factory-Direct Pricing
Factory-Direct Pricing & 24h Quote
Compliance without markup — material, machining, finishing, packaging itemized line by line.
Custom quotation priced by weight & process. Industry reference: caged ladders ≈ USD 899–1,099/ton.
Global OSHA Compliance
OSHA Ladders, Shipped Worldwide
Whether the ladder lands in Houston, Rotterdam or Dubai, the osha fixed ladder rules are baked into the engineering — and the export documentation is matched to your destination port.
- VCI rust protection + ISPM 15 heat-treated crates
- EXW / FOB / CIF terms available
- Pre-assembly QC with full inspection before crating
Common questions
Yes — 29 CFR 1910.27 applies to fixed ladders in general industry, including outdoor installations such as tanks, silos and roofs.
Cal/OSHA (Title 8 §3277) caps rung spacing at 12 in and requires more clearance — 36 in at 76° and 30 in at 90°.
Yes — rung spacing, clearances and fall protection can be brought into compliance, and we supply the retrofit hardware with calcs.
A DoC naming the applicable sections, structural calcs, MTC 3.1 and an inspection record — all shipped free with every order.
Federal OSHA enforces 29 CFR 1910 in most states; state plans such as Cal/OSHA enforce their own standards where approved.
Proven in real facilities
Reference projects are shown by industry, country and scale. Client names are available on request with approval.
National utility projects — 15+ countries
23 documented projects, 2021-2025 · 2025
All standardsEnergy & industrial clients — Global
500+ projects since 2004 · 2004-2025
Full compliance docsLargest single order — Malaysia
60 units in one project · 2021
HDGGet Your Quote
Talk to an Engineer
Free drawing review. Itemized quote in 24 hours. No obligation.
Why Work With Dengtai?
Full Compliance Docs
DoC, MTC, structural calcs included free.
24-Hour Quote
Engineering review + itemized quote within one day.
Global Delivery
8–12 containers/month. VCI + ISPM 15 packaging.
